Road · Aero

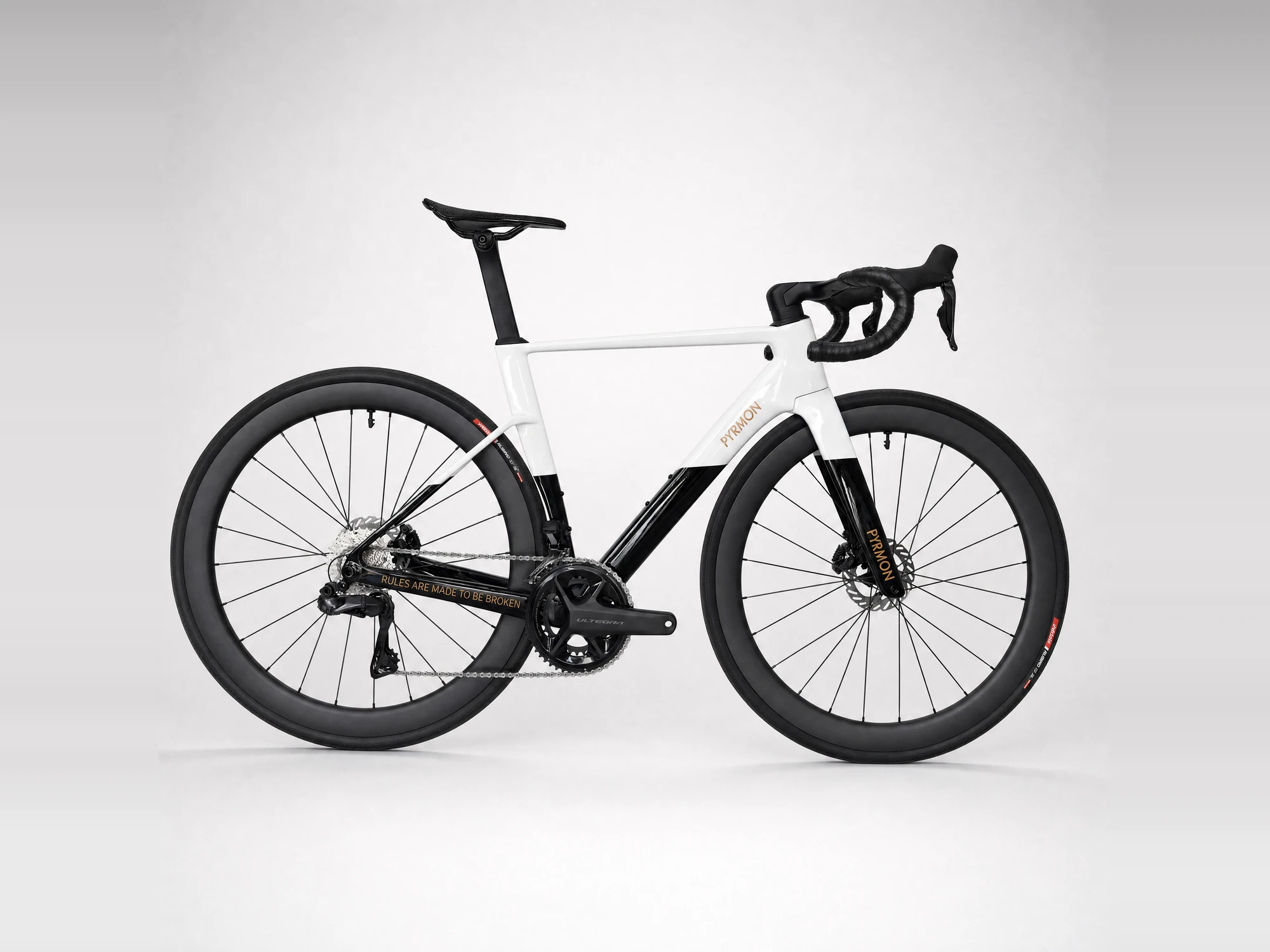

Carlit
Carbon, Shimano Ultegra Di2 and a frame designed to cut through the wind. It carries the name of the roof of Northern Catalonia.
Size
M · frame 54 · 173–181 cm
Which size is mine?
€5,799.00
What makes it different
Born to cut through the wind
Aero tube profiles, fully integrated cables and a riding position designed to hold speed.

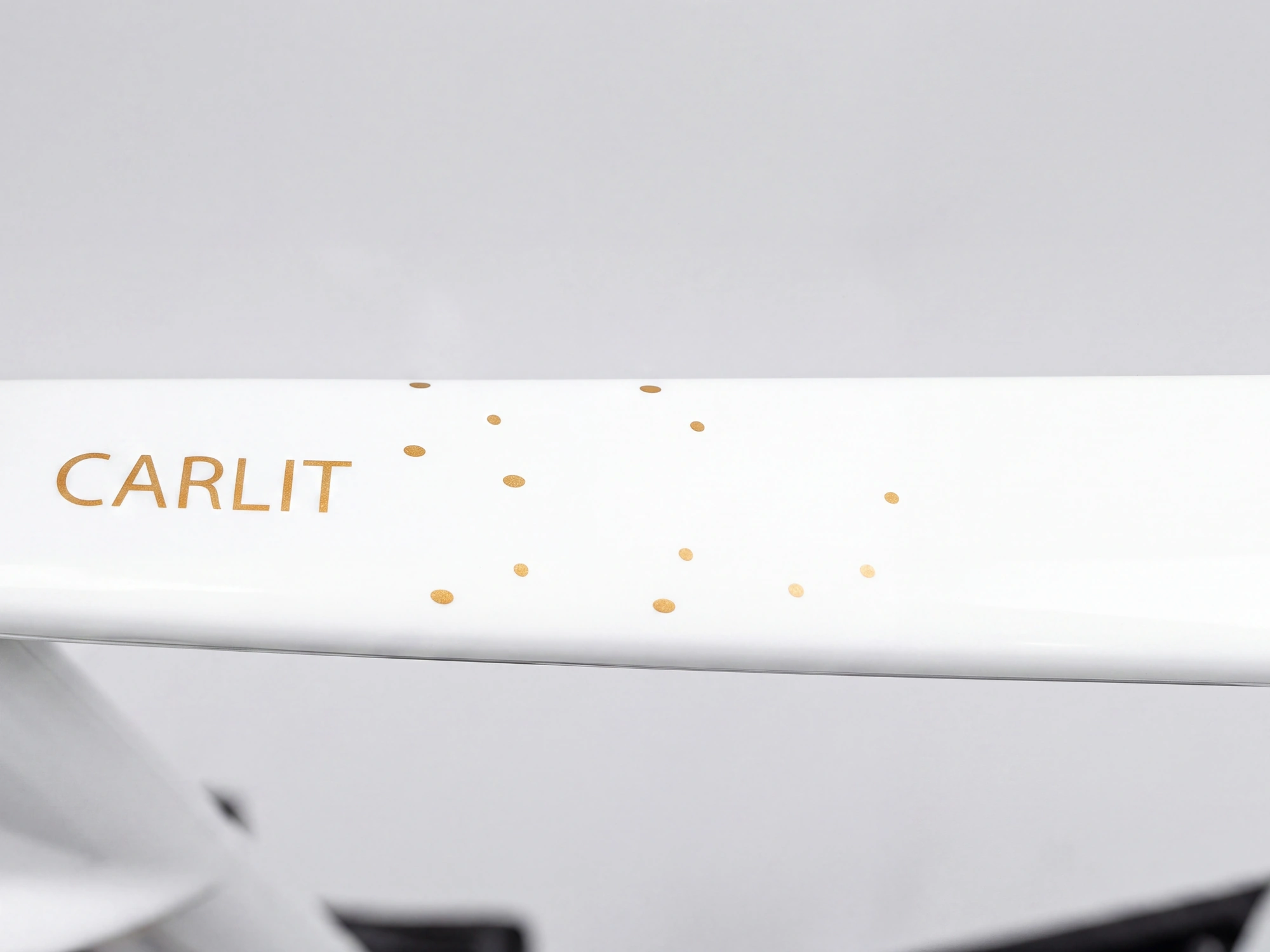

Twelve lakes, twelve dots
Under the Carlit name there are twelve engraved dots: one for each lake on the Twelve Lakes circuit, the route around the Bulloses lakes at the foot of the peak. The mountain does not just give the name: it draws it too.
Built in Catalonia
Every unit is assembled one by one at our Taradell workshop, an hour from Barcelona, with top-level components and the attention to detail only a small local brand can offer.
Features

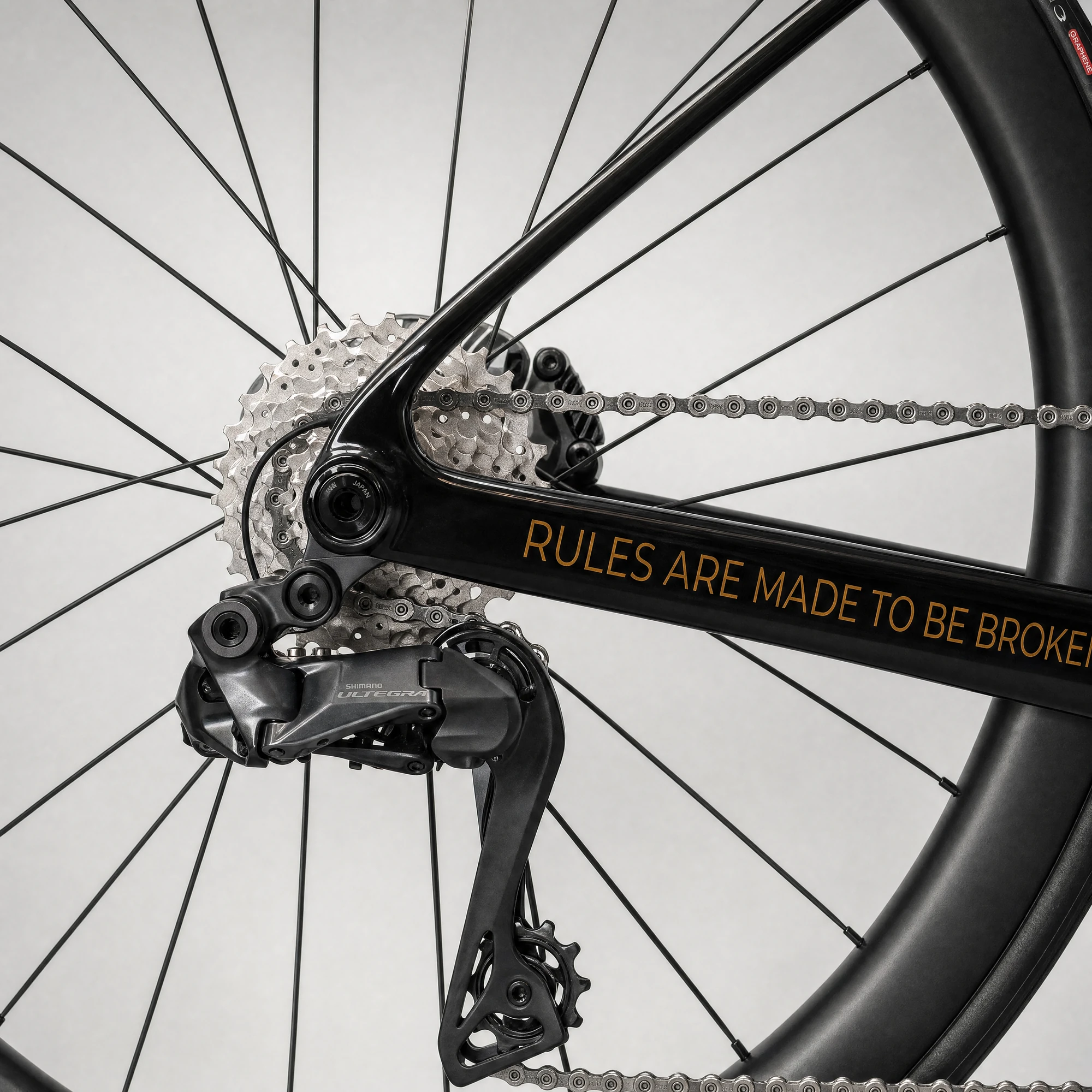

Shimano Ultegra Di2
Electronic, precise, tireless.
Twelve-speed Ultegra Di2 electronic shifting, instant and exact even under load. A 50-34 double crankset and an 11-34 cassette to keep your cadence, plus hydraulic brakes with 160 mm rotors to brake late with a clear head.

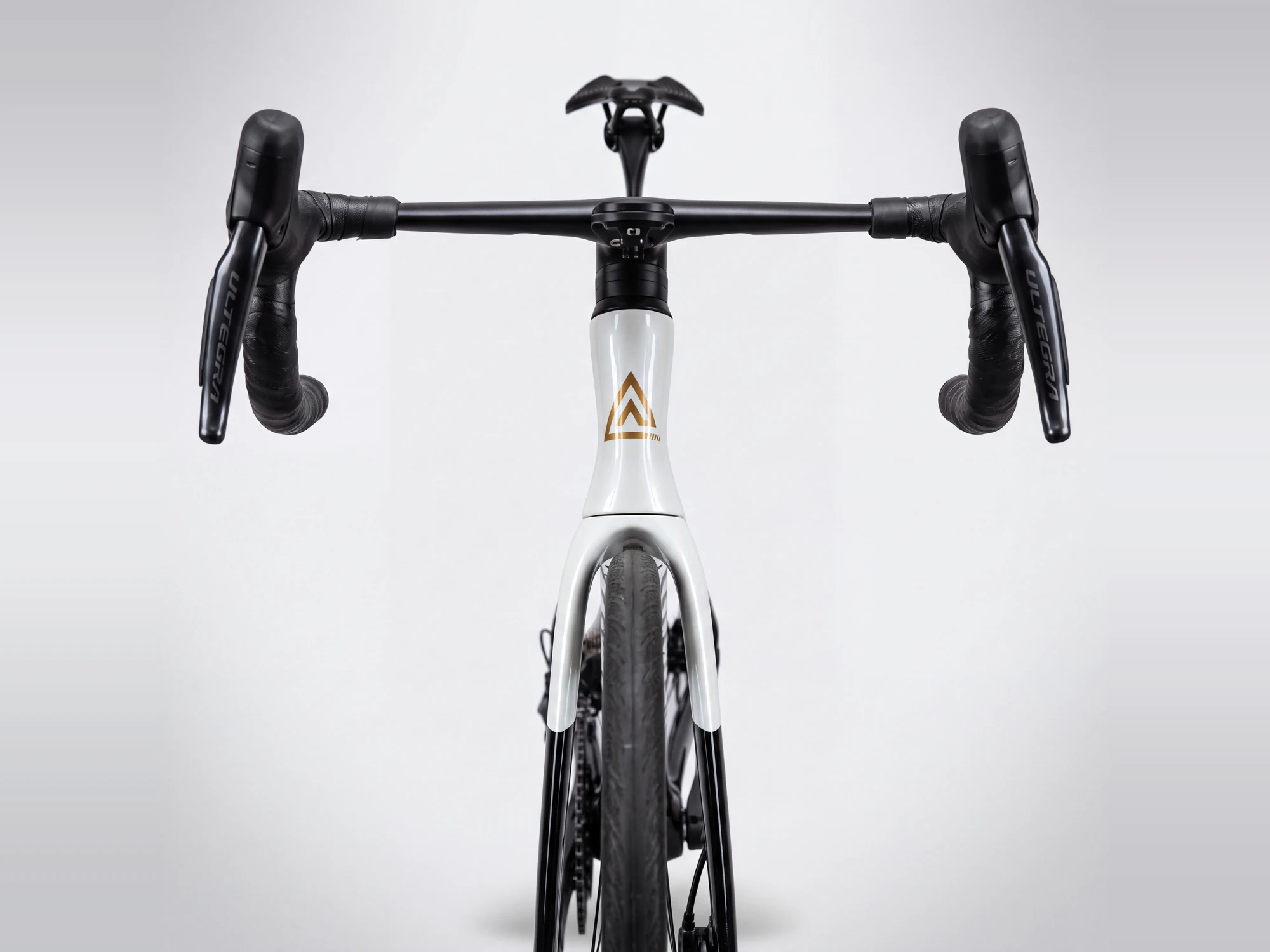

Aerodynamics
Speed is designed too.
Every tube on the Carlit is profiled to cut drag without punishing weight or comfort. The result: 7.58 kg ready to race.

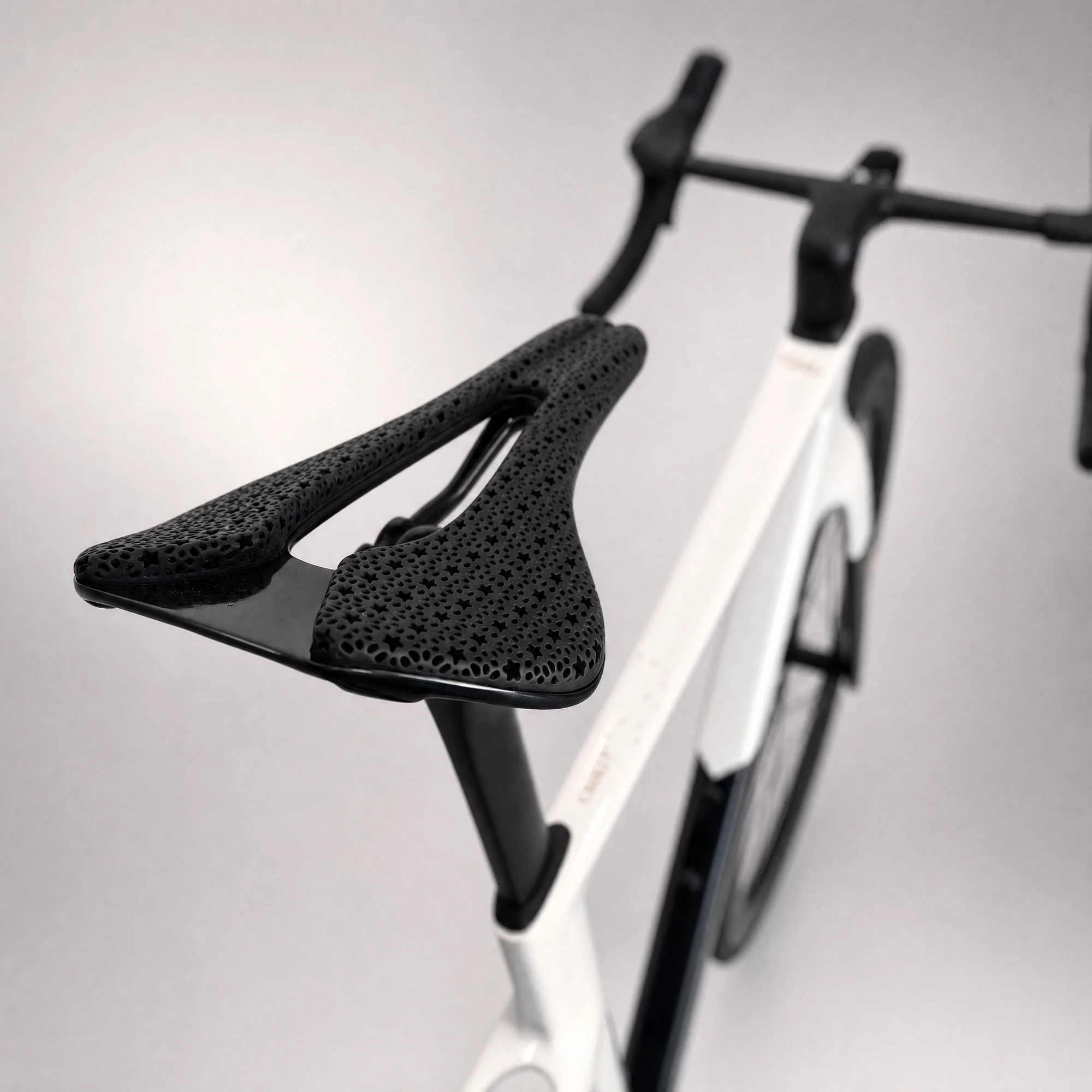

3D carbon saddle
3D-printed, made for hours.
A carbon saddle with a 3D-printed structure: variable densities that cushion where needed and support where it counts. Less weight, fewer pressure points and more hours of riding without thinking about it.
Tech sheet
AeroFrame design
Ultegra Di2Drivetrain · 12s
7.58 kgTotal weight
Made in CataloniaTaradell · Barcelona
Frameset
- FramePYRMON RO-A · Carbon Composite SLR
- ForkPYRMON RO-R FORK · Carbon Composite SLR · Full Internal Cable Routing

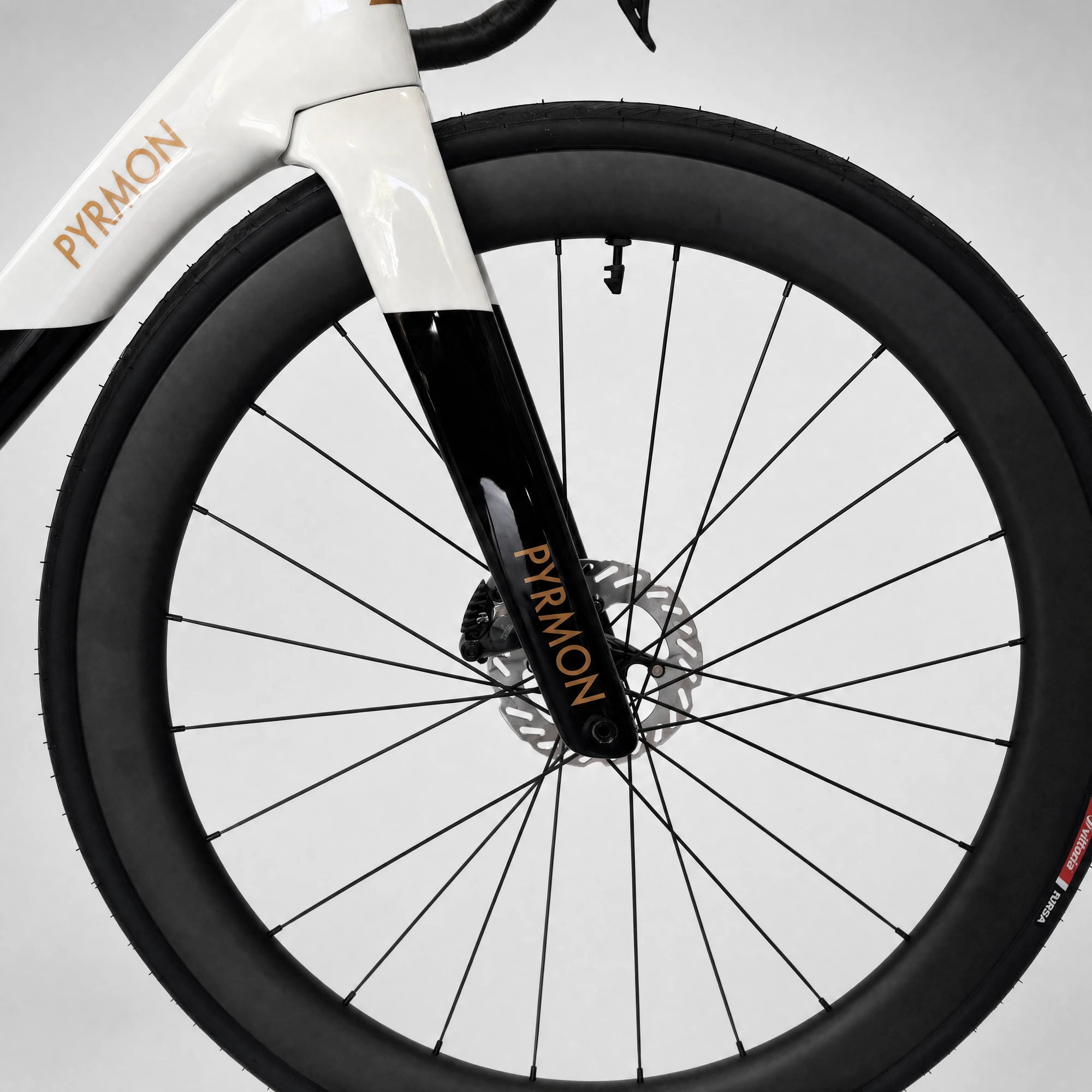

Wheels
- HubNovatec
- RimCIM · carbon · 45 mm deep
- TyreVittoria Rubino · 700×28c

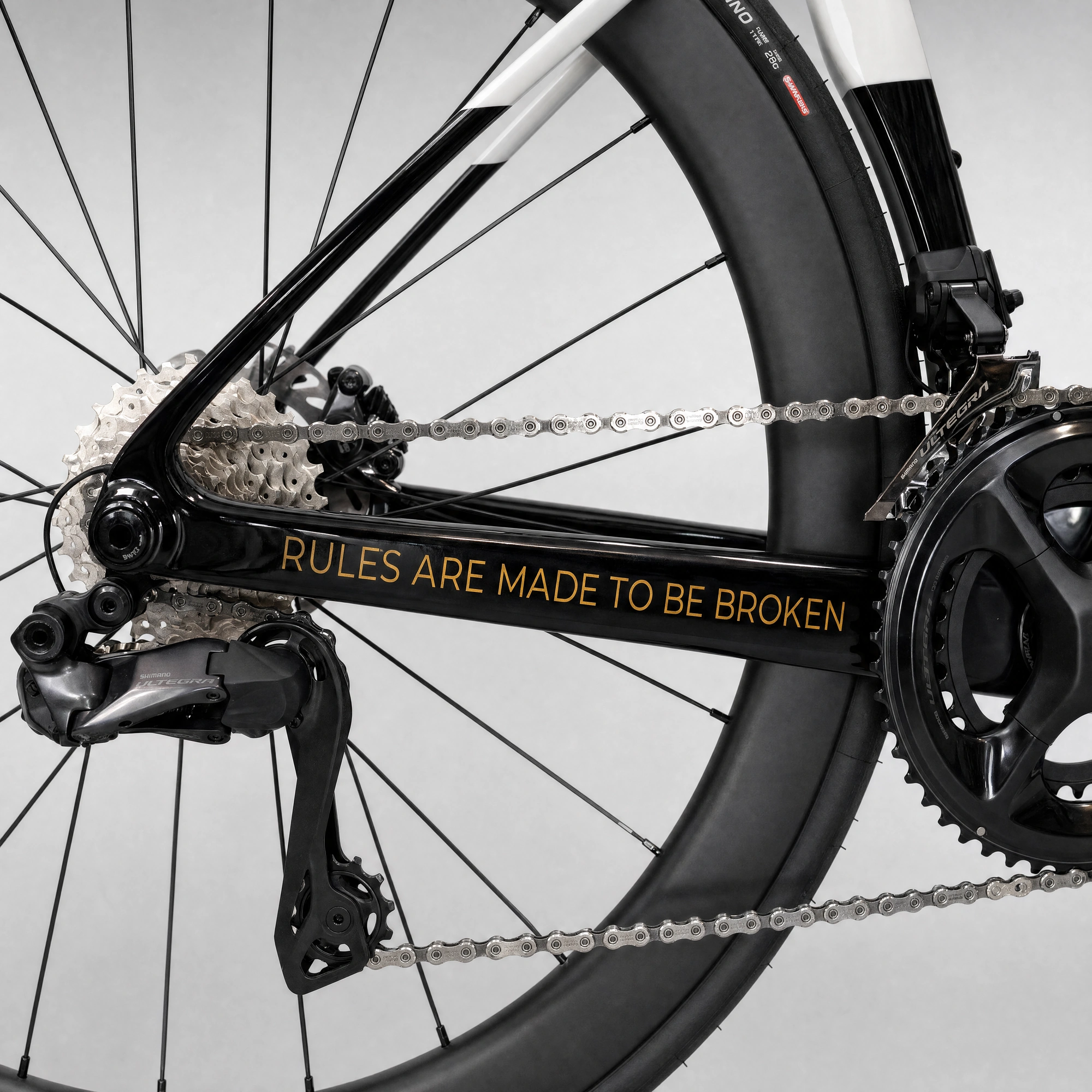

Drivetrain
- ShiftersShimano Ultegra Di2 ST-R8170 · hydraulic disc brake
- Rear derailleurShimano Ultegra Di2 RD-R8150 · 12-speed
- Front derailleurShimano Ultegra Di2 FD-R8150

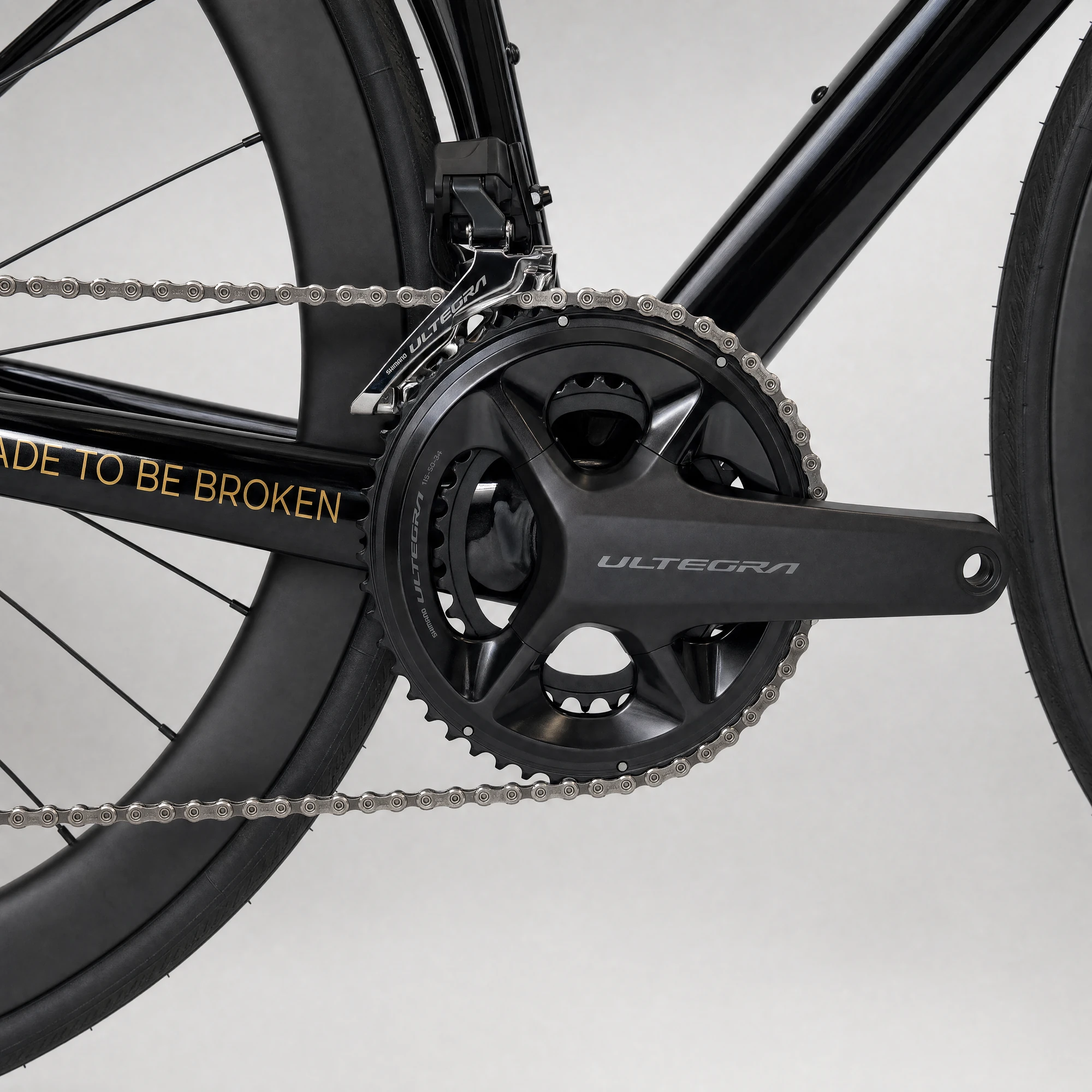

- CranksetShimano Ultegra FC-R8100 Hollowtech II · 50-34
- Bottom bracket (BB)Shimano Road 601
- CassetteShimano 105 · 12s · 11-34
- ChainShimano CN-M7100 · 12s
Components
- Saddle3D-printed carbon saddle
- SeatpostPYRMON RO-R Seat Post · Carbon Composite SLR
- Handlebar + StemPYRMON RO-R Handlebar · Carbon Composite SLR
- Bar tapePRO Tape Pioneer Sport · black
- BrakesShimano Ultegra BR-R8170 · hydraulic disc
- RotorShimano RT-CL800 Center Lock · Ice Tech Freeza · 160 mm
Specifications
- Total weight7.58 kg
- SizesXXS · XS · S · M · L · XL
- Build time4–8 weeks
- Warranty5 years · Crash Replacement

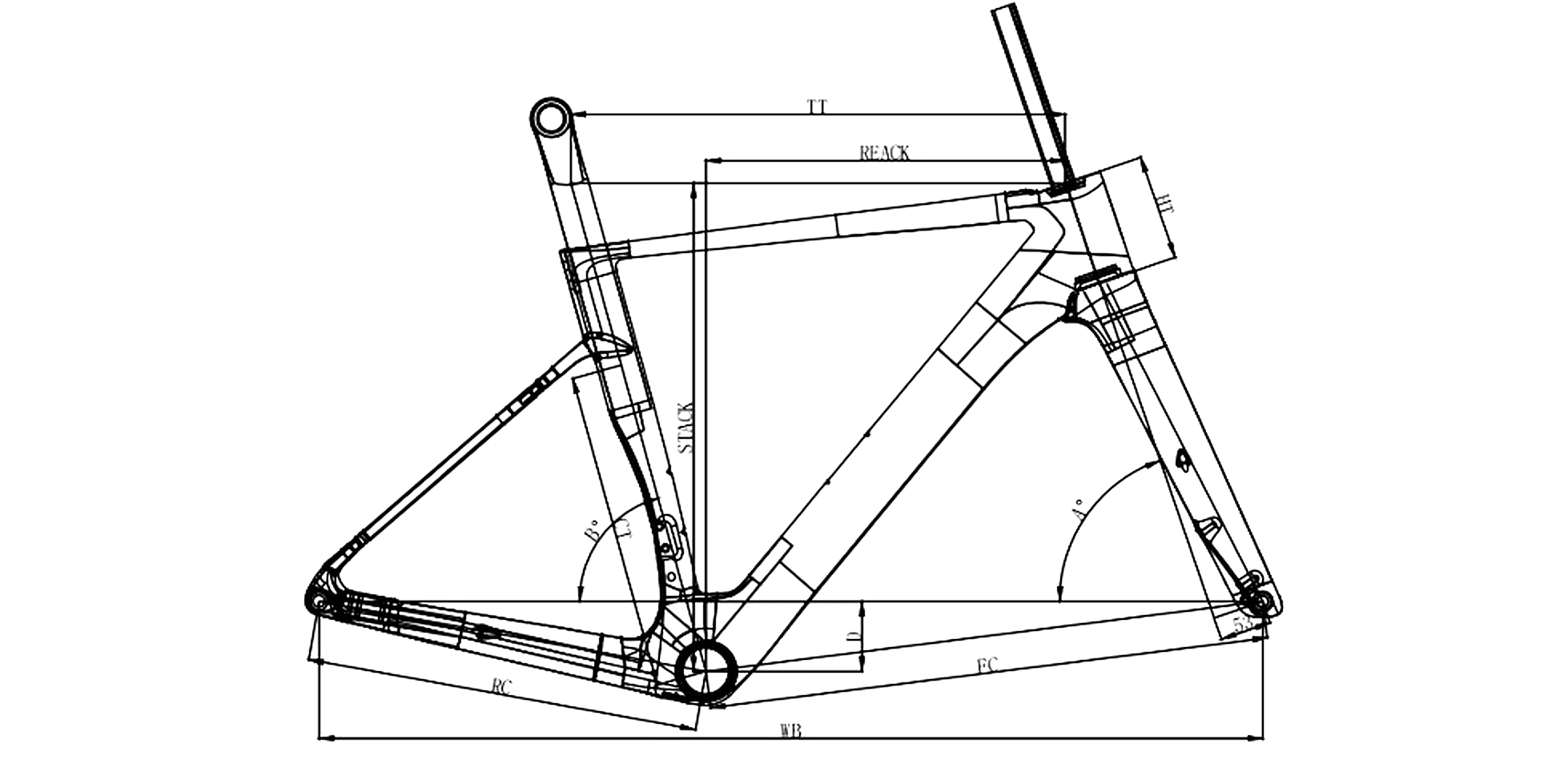

Geometry
Aero geometry: long where you need speed, stable where you need trust. Six sizes, XXS to XL.
| Measurement | XXS | XS | S | M | L | XL |
|---|---|---|---|---|---|---|
| Seat tube length · A (mm) | 432 | 454 | 483 | 502 | 524 | 531 |
| Top tube horizontal · B (mm) | 490 | 509 | 526 | 539 | 559 | 575 |
| Head tube length · C (mm) | 108 | 109 | 125 | 145 | 165 | 188 |
| Head tube angle · G (°) | 71.1 | 71.1 | 72.5 | 72.5 | 73.3 | 73.3 |
| Seat tube angle · F (°) | 75.5 | 74.5 | 74 | 74 | 73.5 | 73.5 |
| Chainstay length · D (mm) | 405 | 405 | 405 | 405 | 405 | 405 |
| Wheelbase · K (mm) | 962 | 972 | 972 | 987 | 995 | 1010 |
| Bottom bracket drop · H (mm) | 72 | 72 | 72 | 70 | 70 | 70 |
| Front center · FC (mm) | 568 | 578 | 578 | 593 | 560 | 615 |
| Stack · L (mm) | 502 | 503 | 523 | 541 | 565 | 587 |
| Reach · M (mm) | 360 | 370 | 376 | 384 | 392 | 401 |
Manufacturing tolerances ±0.5 mm. Every frame is checked one by one at the Taradell workshop.
Not sure about sizing? Let's talk.Sizes
Size guide
| Size | Frame | Rider height |
|---|---|---|
| XXS | 45 | 152–162 cm |
| XS | 49 | 160–169 cm |
| S | 52 | 167–175 cm |
| M | 54 | 173–181 cm |
| L | 56 | 179–187 cm |
| XL | 58 | 185–193 cm |
Indicative ranges based on frame geometry. If you sit between two sizes, torso and arm length decide: write to us and we will help you choose.
Warranty
- 5 years on frame and fork against manufacturing defects, for the first owner.
- Crash Replacement during the first 5 years, with a 20% discount off the RRP.
- Servicing, inspections and repaints at the Taradell workshop, always at a reduced cost.
Buying process
- Step 01Full paymentSecure, with Stripe.
- Step 024–8 week buildAt the Taradell workshop.
- Step 03Pickup or shippingYour choice.
